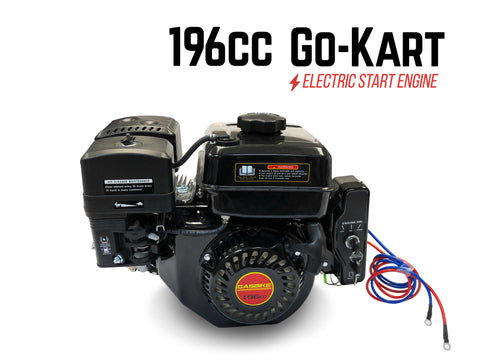

196cc Go-Kart Engine Only - Electric Start
ENGINE SPECS:
|
Engine Type |
Horizontal Single Cylinder 4-Stroke OHV |
|
Certification |
EPA / CARB Approved |
|
SKU |
4EO-006 |
|
Brand |
GasBike Engines |
|
Engine displacement (cc) |
196cc |
|
Horsepower (hp) |
6.5 HP |
|
Cooling System |
Forced air cooled |
|
Fuel Type |
87+ unleaded gasoline |
|
Fuel Capacity |
0.9 gallon (3.6 L) |
|
Fuel consumption ratio g/kW.h |
≤395 |
|
Engine Oil Type SAE |
10W-30 above 32F, 5W-30 at 32F or below |
|
Engine Oil Capacity |
0.6 L |
|
Run Times @ 50% Load with full tank |
3 hours |
|
Sound Level at 22 feet |
104 dB |
|
Bore x Stroke |
68mm x 54mm |
|
Compression Ratio |
8.5:1 |
|
Rotation viewed from PTO (power takeoff - the output shaft |
Counterclockwise |
|
Shaft |
3/4 x 2.43" |
|
Shaft Keyway |
3/16" (4.76mm) |
|
Shaft End Tapped |
5/16" -24 UNF |
|
Manual |
Yes |
|
Weight |
38 lbs |
|
Max. power kW/rpm |
4.8/3600 |
|
Rated. power kW/rpm |
3.8/3600 |
|
Max. Torque N.m/rmp |
11/2500 |
|
Package dimensions mm |
450*360*380 |
|
Battery for Electric Start |
12V 14ah |
Our gasoline operated products are NOT compliant with Environmental Protection Agency ( E.P.A. ) or California Air Resources Board (C.A.R.B) for the use on/off Public roads. Upon purchase, the buyer agrees to use products for racing (closed-course competition) only and NOT for on/off public roads.
